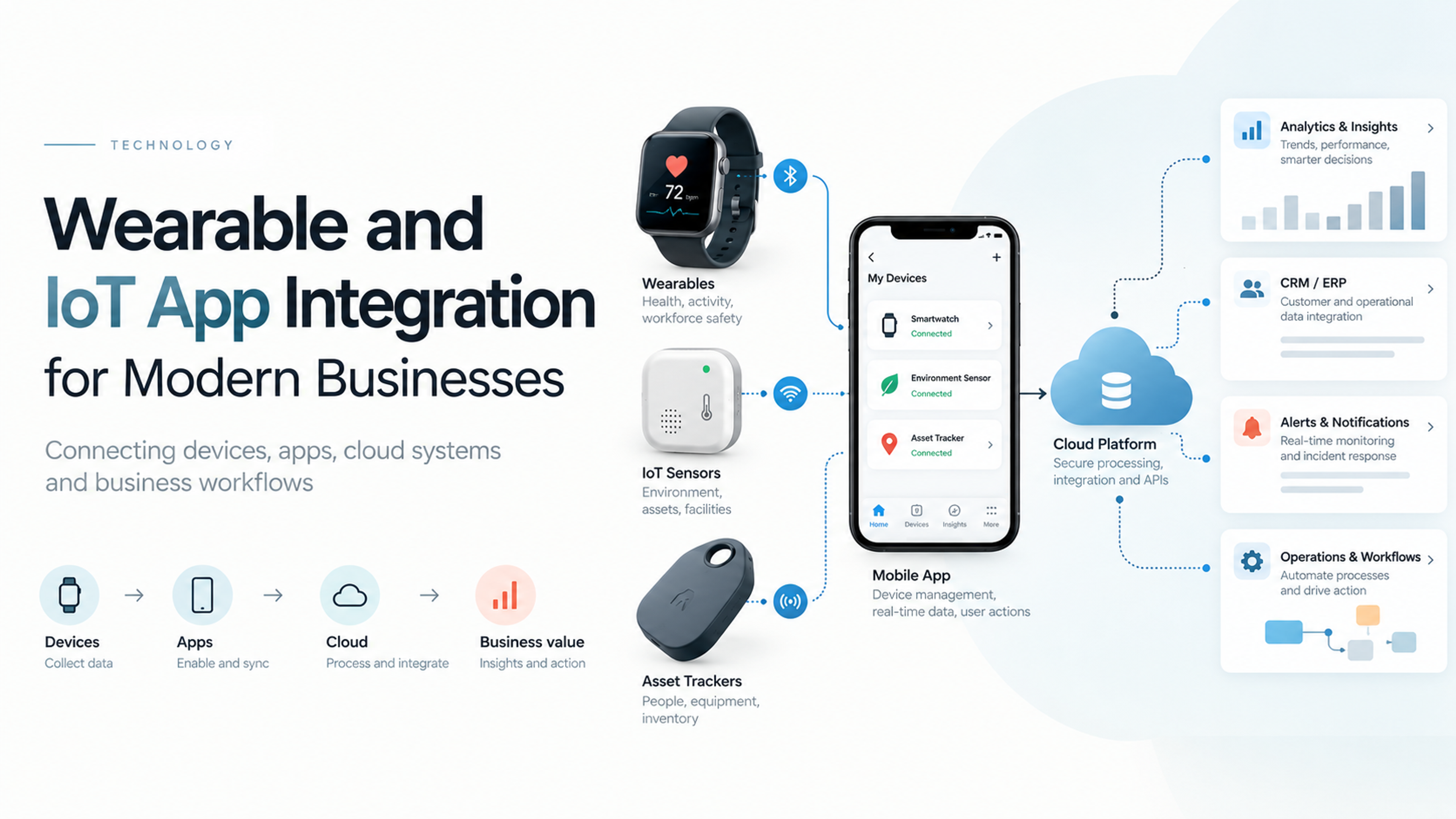

Wearable and IoT App Integration for Modern Businesses

A connected device is rarely valuable because it can connect to a phone.

The value comes from what the business can do once reliable data moves between the device, mobile app, cloud systems and people who need to act on it.

A wearable can capture activity or health measurements. A temperature sensor can detect conditions inside a warehouse. A connected meter can report usage. A smart lock can record access events. A machine-mounted sensor can alert a maintenance team before a fault becomes a shutdown.

But none of those outcomes happens automatically.

Businesses still need to decide how devices will connect, where data will live, which app experiences are necessary, how users will grant permission, what happens when connectivity fails, how devices are updated and how the connected product will remain secure over its full life.

That makes wearable and IoT app integration a systems-design problem, not simply a mobile-development task.

Bluetooth Low Energy remains one of the most important foundations for this type of work. The Bluetooth SIG describes Bluetooth LE as a low-power radio supporting point-to-point, broadcast and mesh communication, which is why it appears in wearables, sensors, trackers and many other connected-device products. Bluetooth® Technology Website

At the same time, platform-specific frameworks such as Apple HealthKit, Android Health Connect, Wear OS Health Services, Apple Watch Connectivity and Matter increasingly determine how an app should exchange particular kinds of data.

The practical challenge for a business is choosing the right combination rather than connecting everything in the most direct way possible.

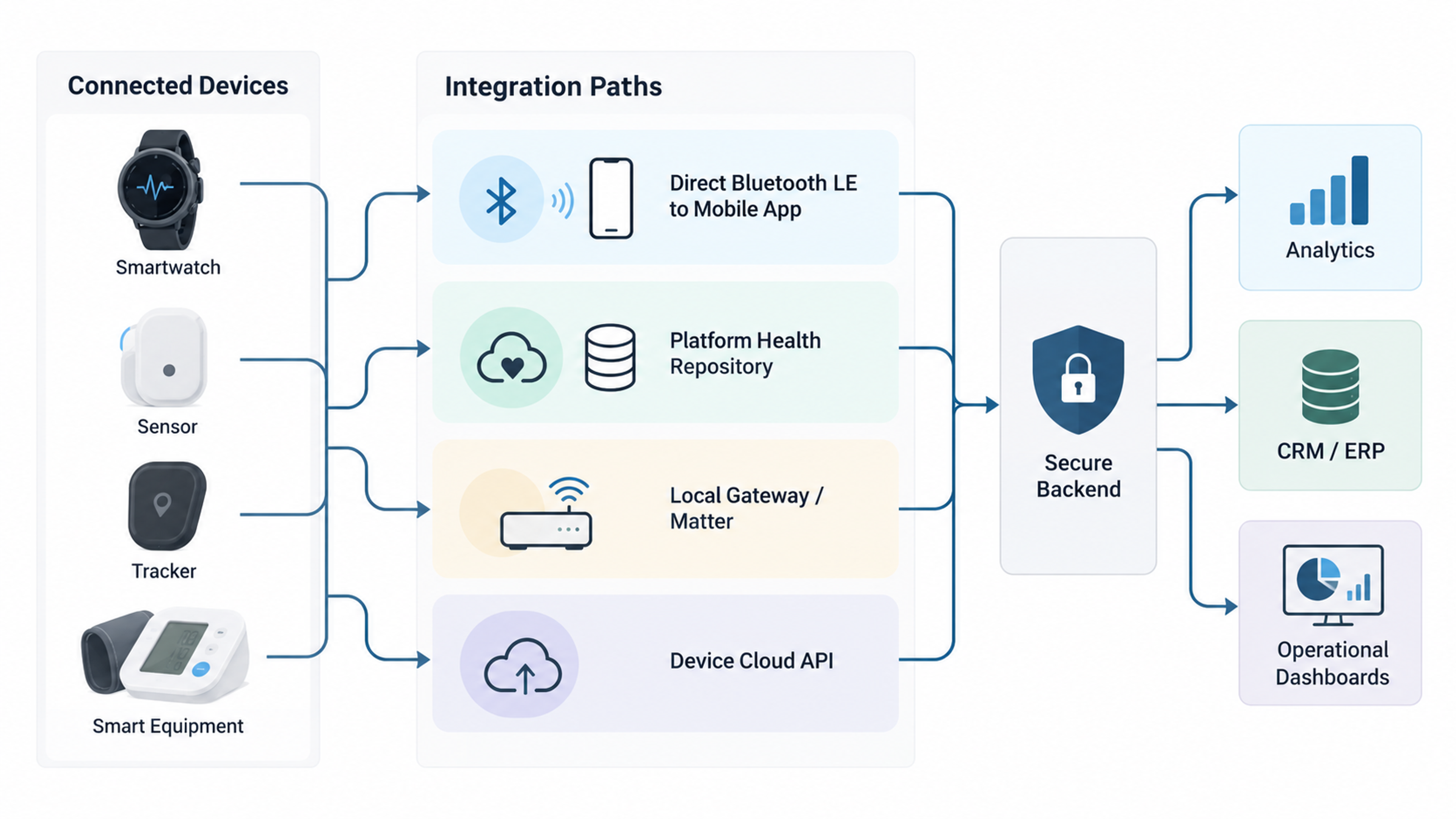

What wearable and IoT app integration actually means

A connected-product system usually contains several layers.

At one end is the physical device.

That might be:

a smartwatch, fitness band, environmental sensor, medical-adjacent device, asset tracker, smart appliance, industrial monitor, access controller or connected piece of equipment.

The device collects measurements or exposes controls.

A mobile application may then become the user's main interface for:

pairing, configuration, authentication, live status, alerts, historical data, troubleshooting and firmware updates.

Behind the app may be a backend that handles:

accounts, device registration, business rules, analytics, notifications, storage, reporting and integrations with systems such as CRM, ERP or field-service software.

A typical flow therefore looks something like:

Device → Mobile App or Gateway → Cloud Platform → Business Systems → User or Operator

But not every product should follow that exact path.

Some devices can communicate directly with the cloud.

Some apps can read already-aggregated data from Apple HealthKit or Android Health Connect without integrating with every underlying wearable individually.

Some smart-home devices can operate locally through Matter.

Some wearable experiences need a dedicated watch app and phone companion.

The correct architecture depends on what information is needed and where the business logic belongs.

Start with the business event, not the device

A common IoT project starts with a device specification.

The conversation immediately becomes:

Which sensors does it have?

Does it support Bluetooth?

How frequently can it transmit?

Which SDK does the manufacturer provide?

Those questions matter, but they should come later.

Start by defining the business event that matters.

For a logistics company, that event might be:

"Temperature exceeded the permitted range for more than five minutes."

For a facility-management company:

"Equipment vibration moved outside the acceptable pattern."

For a workforce-safety product:

"Worker triggered an emergency alert."

For a wellness application:

"User completed today's activity target."

For a field-service operation:

"Device reports maintenance is due within 50 operating hours."

The integration should be built around capturing, validating and acting on those events.

Otherwise, businesses often collect huge quantities of sensor data without a clear reason for storing it.

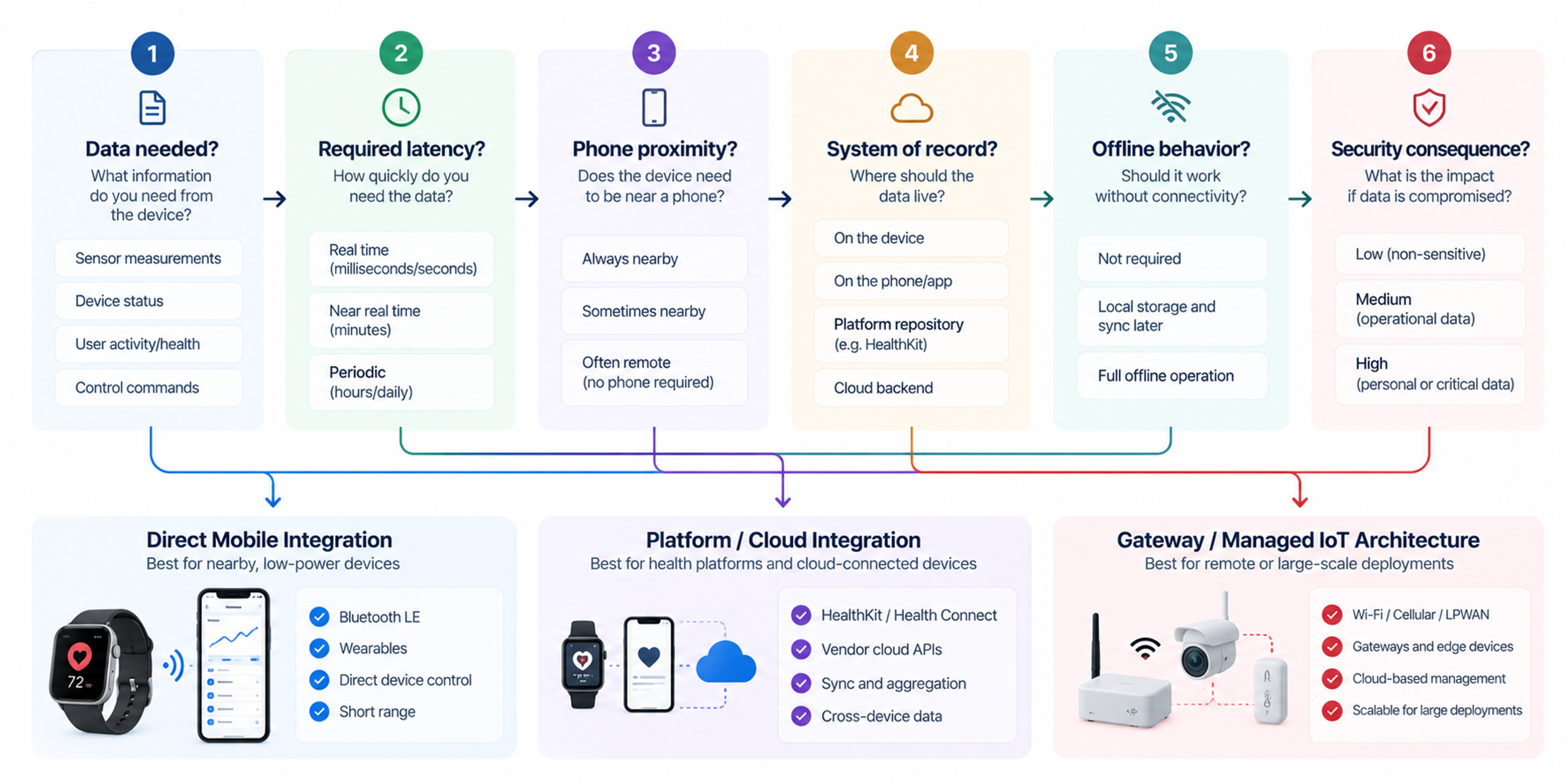

Four common integration models

Most wearable and IoT applications fit primarily into one or more of four patterns.

Direct device-to-app integration

The mobile app communicates directly with the device, commonly using Bluetooth Low Energy.

This works well when the phone needs to:

discover a nearby device, configure it, read live measurements, send commands or transfer stored records.

Apple provides Core Bluetooth for communication with Bluetooth LE and supported Bluetooth Classic devices. It allows apps to discover peripherals, inspect their services and exchange data through characteristics. Apple Developer

On the product side, Bluetooth LE is attractive because it is designed for very low-power operation, which matters for battery-powered sensors and wearables. Bluetooth® Technology Website

Direct Bluetooth integration gives the app considerable control.

It also creates engineering responsibilities.

Your app must deal with:

pairing, reconnection, device discovery, changing signal conditions, data synchronization, duplicate records, device firmware versions and operating-system background restrictions.

That can be completely appropriate for a core product experience.

It is usually excessive if the business only needs data already available through a platform such as HealthKit.

Platform-mediated integration

Wearable data does not always need to come directly from the original device.

Apple HealthKit provides a central repository for health and fitness information from iPhone, Apple Watch and compatible apps. Apps can read and write permitted data through that shared store. Apple Developer

Android's Health Connect serves a similar role for health and fitness data. Google's current Android developer documentation treats Health Connect as the primary platform for apps that need permissioned health-data sharing, while Health Services on Wear OS provides sensor-derived exercise and health metrics on the watch itself. Android Developers

This means a business building a fitness, coaching or wellness experience may not need individual integrations with dozens of consumer wearable brands.

Instead:

wearable → platform health repository → your app

can be the more scalable route.

That does not make platform integration trivial.

Permissions, data provenance, duplicated records, unit normalization and synchronization logic still require careful design.

But it can dramatically reduce the number of device-specific dependencies your application owns.

Companion wearable integration

Sometimes your product includes both a phone app and a dedicated wearable app.

For Apple Watch, Apple's Watch Connectivity framework supports two-way communication between an iOS app and its paired watchOS app, including messages, user information and file transfers. Many transfers can continue in the background. Apple Developer

Wear OS offers a Data Layer API that synchronizes information between Wear OS devices and paired Android devices. Google specifically notes that this API is intended for wearable-to-handheld communication rather than as the primary path to the wider network. Android Developers

A companion architecture is useful when the wearable needs to work independently for periods of time but still exchange state with the mobile app.

Examples include:

fitness sessions, workforce tasks, alerts, checklists and quick control interfaces.

The key design principle is not to assume both devices are always connected.

Cloud or gateway integration

Many business IoT systems communicate through a gateway or cloud service.

For example:

sensor → gateway → IoT cloud → mobile app

or:

device → vendor cloud → your backend → mobile app

This can be more appropriate when devices are:

remote, fixed in buildings, distributed across fleets or deployed at industrial scale.

The mobile app becomes one consumer of the data rather than the physical bridge between device and internet.

This architecture also allows the business to integrate connected-device data with operational software without requiring a user's phone to be nearby.

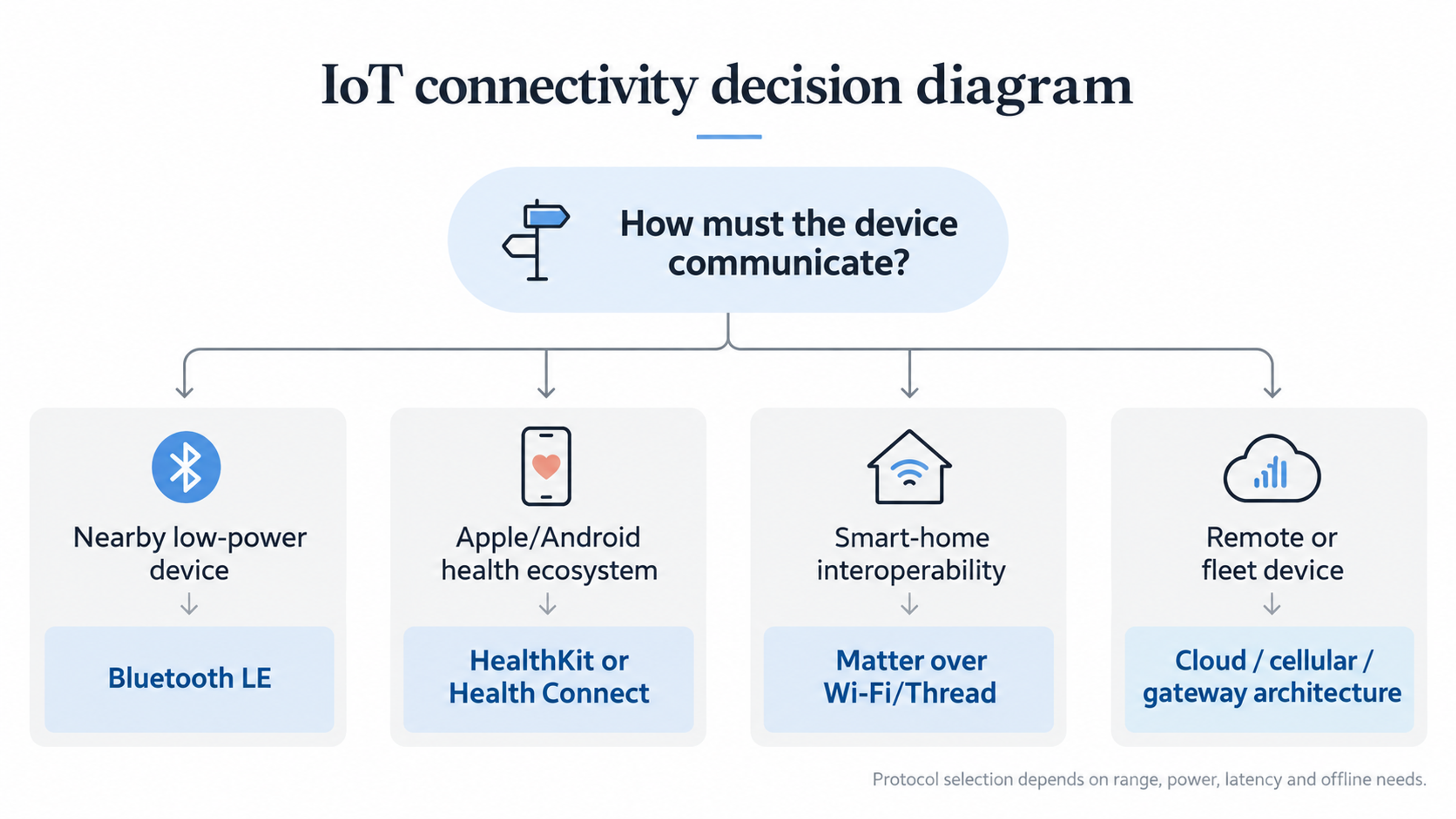

Do not choose Bluetooth just because a device has Bluetooth

Bluetooth LE is extremely useful, but it is not a universal answer.

Ask what connectivity characteristics the product needs.

A wearable that transfers small measurements to a nearby phone is a natural BLE use case.

A warehouse with hundreds of devices may need gateways and local networking.

A tracker operating far away from a user's phone may require cellular connectivity.

A smart-building product may need Wi-Fi, Thread or another IP-based system.

An industrial deployment may depend on protocols already used by the equipment.

Bluetooth LE also supports several topologies, including point-to-point, broadcast and mesh, but the right architecture still depends on power, range, latency, deployment density and operational support requirements. Bluetooth® Technology Website

Protocol choice should follow the use case.

Not the other way around.

Matter changes part of the IoT integration conversation

For smart-home and some connected-building products, Matter deserves specific attention.

Matter is an interoperable standard designed to let compatible devices work across different ecosystems using a common application protocol.

Apple describes Matter as a smart-home standard that allows devices from multiple manufacturers and ecosystems to work together. Apple's implementation supports commissioning compatible devices onto Wi-Fi or Thread networks. Apple Developer

Google similarly positions Matter as an IP-based local-connectivity standard that can provide lower latency and higher reliability than a cloud-only path, while reducing the need to build separate integrations for every compatible ecosystem. Google Home Developers

This does not mean every IoT product should adopt Matter.

It currently targets supported device categories and requires appropriate hardware and software capabilities.

But if a company is building a smart-home product, choosing a proprietary mobile-to-device protocol without evaluating Matter could create unnecessary long-term integration work.

Wearables require a different approach to permissions

Wearable applications often process highly personal data.

That changes how permissions should be designed.

HealthKit requires fine-grained authorization for each category of health data an application wants to read or write. Apple recommends requesting access when the feature actually needs it instead of asking for every possible permission immediately. Apple Developer

Android Health Connect follows a similar user-control principle. Google's guidance expects apps to let users manage their Health Connect connection and access permissions, and to keep functioning as far as possible when some permissions are unavailable. Android Developers

That has a direct impact on product design.

Do not design your entire onboarding around:

"Accept everything or the app cannot continue."

Instead, build graceful capability boundaries.

If heart-rate permission is denied but step data is available, perhaps the activity feature can still operate.

If location permission is optional, do not block unrelated device controls because the user declined it.

Permission handling is part of the user experience, not a legal screen placed before the real product begins.

Treat health data as a special category

Businesses integrating wearables need to be especially careful with health-related information.

Apple explicitly restricts how HealthKit information can be used. Its developer documentation says HealthKit data cannot be used for advertising, cannot be sold to advertising platforms or data brokers, and should only be shared with third parties under permitted health-related circumstances and with appropriate user permission. Apple Developer

Regulatory obligations vary by country, business model and data flow.

A wellness app is not automatically governed in the same way as a hospital system, but that does not mean consumer health information is free from regulation.

In the United States, the FTC provides separate guidance covering consumer health information, the FTC Act and its Health Breach Notification Rule in addition to HIPAA-related considerations where applicable. Federal Trade Commission

For businesses, the practical lesson is simple:

Do not begin a wearable project by asking what information you can collect.

Ask what information the product actually requires.

Device integration introduces more failure states than a normal app

A standard mobile app already needs to handle:

slow networks, API failures, expired sessions and offline usage.

A connected-device app adds another layer of failure.

The device may be:

powered off, out of range, paired to another phone, low on battery, running old firmware, partially synchronized or unable to complete a command.

Bluetooth can be enabled while the specific device is unreachable.

A watch can store data while disconnected from the phone.

A cloud IoT platform may receive data while the mobile app is inactive.

A field device may reconnect hours after an event occurred.

Good architecture therefore assumes disconnection is normal.

Your data model should track information such as:

device identifier, source, measurement time, receipt time, synchronization state and firmware version.

Do not simply store:

"value = 72"

if the business needs to know when, where and from which device that value originated.

Offline behavior should be designed before launch

Consider a wearable inspection app used by workers in areas with unreliable connectivity.

A poor design requires a live internet connection for every task.

A stronger design allows:

device data → wearable or phone → encrypted local storage → later synchronization

with conflict handling when connectivity returns.

The same principle applies to consumer wearables.

Measurements may accumulate on the wearable and synchronize later.

The app must understand the difference between:

"no new measurement exists"

and:

"the measurement has not synchronized yet."

That distinction becomes particularly important when alerts or compliance workflows depend on the data.

Separate raw telemetry from business events

IoT devices can generate enormous streams of low-level telemetry.

The mobile application does not necessarily need all of it.

For example, a vibration sensor might generate frequent samples.

A maintenance team may only need:

normal, warning, critical and last inspection time.

A good architecture often has two layers.

Telemetry layer: detailed measurements used for analysis and diagnostics.

Business-event layer: meaningful states used by apps and workflows.

That allows the mobile app to remain simple while the backend retains enough detail for engineering or analytics.

It also reduces unnecessary mobile synchronization.

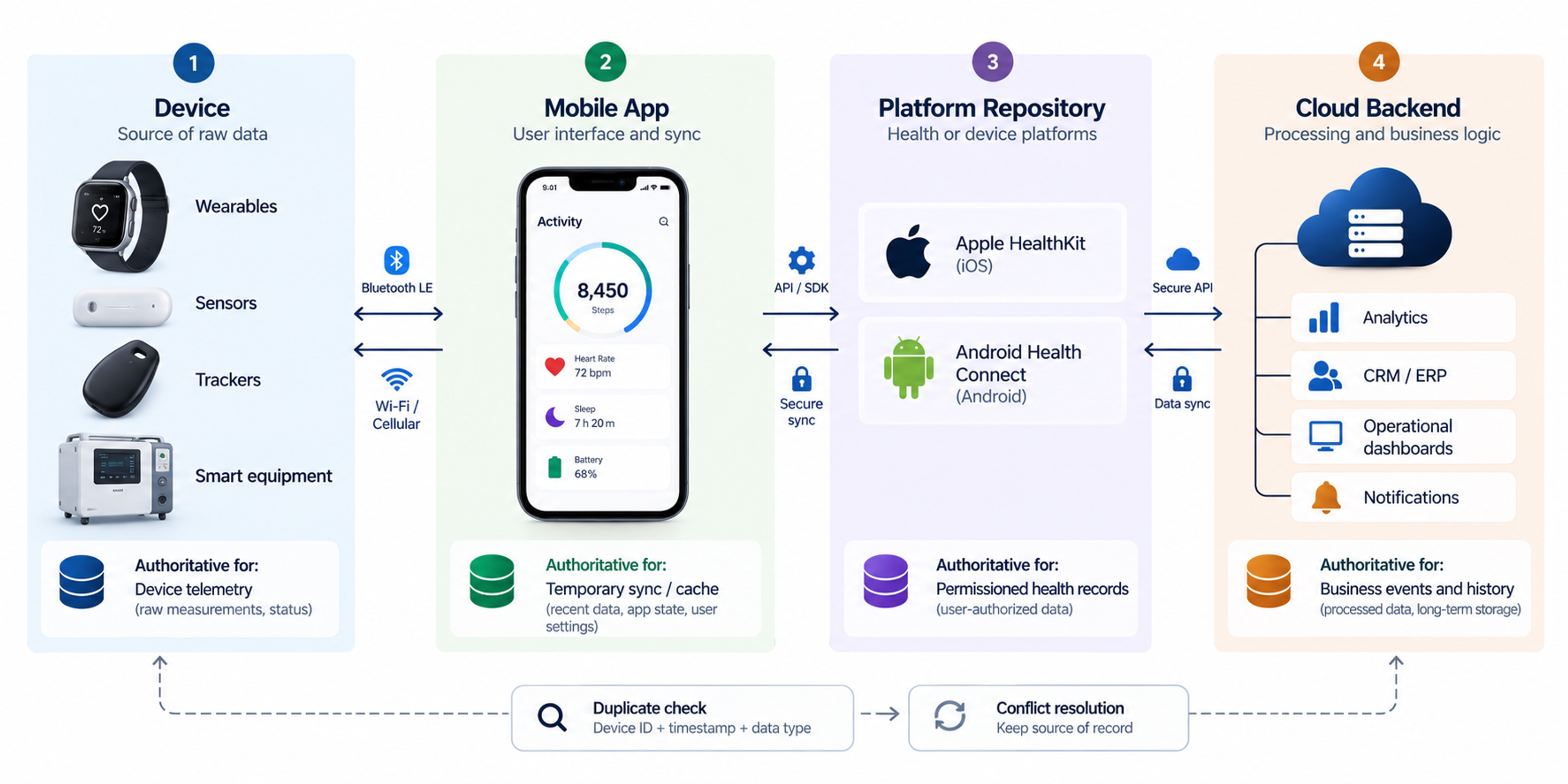

Design data ownership before building APIs

Connected ecosystems create difficult ownership questions.

Who owns the canonical copy of a measurement?

The device?

The phone?

The health repository?

The IoT cloud?

Your application database?

You need an explicit answer.

Otherwise, synchronization logic becomes unpredictable.

For each important data type, define:

source of truth, timestamp rules, duplicate detection, overwrite rules, retention period and deletion behavior.

For example:

Raw sensor reading: device-generated, immutable.

Processed activity summary: backend-generated.

User nickname for device: app database.

Apple Health step history: HealthKit remains the external source, with your system storing only the information it actually needs.

That architecture prevents the app from becoming a collection of disconnected copies.

Security must cover the product, not just the app

Wearable and IoT security is broader than mobile application security.

The attack surface can include:

device firmware, Bluetooth interfaces, Wi-Fi, cloud APIs, mobile apps, administrative dashboards, update systems and vendor integrations.

The FTC recommends building security into connected products from the beginning, using risk-based design, strong authentication, encryption, secure remote access, appropriate access controls, data minimization and ongoing security updates. Federal Trade Commission

NIST's updated 2026 guidance for IoT product manufacturers similarly emphasizes cybersecurity activities across the product lifecycle, including pre-market and post-market responsibilities, customer communication, maintenance, support and end-of-life considerations. NIST

This matters because IoT products can stay deployed far longer than normal mobile apps.

NIST notes that some IoT products may remain in service for decades. NIST Publications

The business therefore needs answers to questions such as:

How are device credentials created?

Can two devices share the same default password?

How are firmware updates signed and distributed?

What happens when a device reaches end of support?

Can a compromised device be revoked?

Can a customer securely transfer ownership?

How will the business disclose security updates?

Security cannot be a release-week checklist.

Secure onboarding is a product feature

The first connection between a device and a user is particularly important.

NIST's National Cybersecurity Center of Excellence has emphasized trusted IoT onboarding using unique network credentials and establishing trust before a device joins a network. Its final 2025 onboarding publications focus on securely provisioning and managing connected devices throughout their lifecycle. NIST

From a user-experience perspective, good onboarding should make the secure path the easy path.

For a consumer product, that may involve:

scan device code → verify ownership → securely provision credentials → register device → confirm successful connection.

Matter demonstrates one approach to this. Apple's Matter support can use a setup code and system-mediated onboarding to provision compatible devices onto Wi-Fi or Thread while keeping the user in control of the pairing process. Apple Developer

Businesses building proprietary onboarding should aim for comparable clarity.

Firmware updates belong in the application architecture

Connected hardware does not stop changing after shipment.

Firmware defects and security vulnerabilities will eventually be discovered.

Your product needs a safe update mechanism.

The mobile application may need to:

check compatibility, download firmware, transfer it to a device, show progress and recover from interrupted updates.

Alternatively, the device may update directly through its network connection.

Either way, consider:

signed firmware, rollback behavior, minimum supported versions, update scheduling and what happens if an update fails halfway through.

This is one area where the cost of "we will add it later" can be enormous.

Do not assume every device needs real-time data

"Real time" is frequently written into IoT requirements without defining what it means.

A smartwatch heart-rate display may require low latency.

An office temperature dashboard might be fine with updates every few minutes.

A water meter may only need periodic reporting.

A maintenance system may only care when a threshold is crossed.

Higher frequency has costs.

It can increase:

battery consumption, mobile background activity, cloud traffic, storage and processing requirements.

Set the update rate based on the business decision that the data supports.

Mobile operating systems affect connected-device behavior

A prototype often works beautifully while the application is open.

The problems appear when it enters the background.

Mobile operating systems control background execution to protect battery life and privacy.

That means connected-device apps must be designed around platform-supported behavior rather than assuming an app can run continuously.

Apple's current Core Bluetooth documentation includes specific background behavior and permission requirements, and its recent platform versions continue to place background activity within operating-system-controlled mechanisms. Apple Developer

Wearable frameworks also provide specialized transfer mechanisms because a phone and watch may not both be active.

The engineering team should test:

screen locked, app backgrounded, phone rebooted, Bluetooth toggled, device out of range, device reconnecting and permissions changed.

Happy-path testing is nowhere near enough.

How wearable integrations create business value

The technology becomes commercially meaningful when connected data changes an operational or customer outcome.

Preventive maintenance

Machine data can trigger service before failure.

Instead of:

scheduled inspection every 30 days

the workflow can become:

sensor condition changed → maintenance alert → technician assigned.

Asset and fleet visibility

Connected devices can provide status and location context for equipment that would otherwise be manually checked.

Workforce applications

Wearables can support:

task confirmations, safety alerts, access control and hands-free workflows.

Health and wellness products

Businesses can combine user-authorized activity data with coaching, challenges, employee-wellness programs or personalized fitness experiences.

Smart products

Manufacturers can turn traditional equipment into an ongoing digital relationship.

The mobile app may provide:

device setup, personalized controls, diagnostics, consumable reminders and service support.

Energy and building management

Connected sensors can support:

temperature, occupancy, lighting and equipment automation.

The business case should still be measured through outcomes such as:

reduced downtime, lower support costs, increased engagement, fewer manual inspections or higher service revenue.

A practical integration decision framework

Before development begins, answer six questions.

1.What exact information do we need?

Avoid "all device data."

Specify:

heart rate, temperature, battery state, lock state, equipment alarm or daily activity total.

2.How quickly do we need it?

Milliseconds, seconds, minutes or once per day produce very different architectures.

3.Does the phone need to be nearby?

If yes, direct BLE may work.

If no, the device likely needs another path to the backend.

4.Who owns the data?

Define the system of record before designing synchronization.

5.What happens without connectivity?

Make offline behavior explicit.

6.What happens if this device is compromised?

That question should influence authentication, network access, permissions and update strategy from day one.

Build an MVP around one complete device journey

IoT MVPs often contain too many partial features.

A better approach is to build one journey end to end.

For example:

Pair device → Read measurement → Validate data → Synchronize to cloud → Display history → Trigger one useful alert

That tests almost every important layer:

hardware, connectivity, mobile UX, data model, backend and notification flow.

Compare that with building:

device dashboard, account settings, ten charts and multiple tabs

before dependable synchronization exists.

The first approach reduces architecture risk much faster.

Test with real hardware earlier than you think

Simulators are useful for UI development.

They are not enough for connected-product QA.

Real devices introduce problems such as:

weak signal, battery behavior, chipset differences, radio interference, firmware inconsistency and timing issues.

Apple's Watch Connectivity documentation explicitly notes that its sample should be tested using a physical iPhone and Apple Watch. Apple Developer

The same practical principle applies across connected-device development.

Once hardware exists, use it continuously.

Do not wait until acceptance testing.

Measure connection quality as a product metric

Traditional application teams monitor:

crash rate, API latency and uptime.

Connected applications also need device-specific metrics.

Useful measures can include:

pairing success rate, connection failures, average synchronization duration, firmware distribution, stale devices, battery-related disconnects and command failure rate.

Operational support should be able to answer:

Is the problem the user's phone?

The device?

The network?

The backend?

The account?

Without observability, connected-device support becomes guesswork.

Plan for device identity separately from user identity

Users can change phones.

Devices can be resold.

One customer can own several devices.

One device may be shared between several authorized operators.

Therefore:

user ID ≠ device ID.

Your backend should model them separately.

A typical system might contain:

user account, organization, device identity, device ownership, permissions and installation/location.

This makes transfers, revocation and enterprise access much easier to manage.

Avoid creating an app that becomes a remote control for a bad product

A connected device should still be useful and reliable.

Adding an app cannot compensate for:

difficult setup, poor connectivity, short battery life, unclear device states or unreliable firmware.

The physical-device experience and digital experience need to be designed together.

If a user must open the app five times before the device connects, the integration is not successful simply because Bluetooth eventually works.

The metric is not:

"connection technically occurred."

It is:

"the user completed the task reliably."

When custom development is justified

Off-the-shelf IoT platforms can handle common infrastructure such as:

device registries, messaging, dashboards and rules.

Custom development becomes more valuable when the company needs:

proprietary device workflows, deep ERP or operational integrations, specialized offline behavior, branded companion apps, unusual hardware communication or differentiated analytics.

The right architecture is often hybrid.

Use platform infrastructure for commodity capabilities.

Build custom software where the workflow creates competitive value.

Do not custom-build authentication, encryption or IoT messaging simply because the project is described as "custom."

The mobile app is only one part of the connected product

Wearable and IoT projects become difficult when they are treated like ordinary app builds with a device added at the edge.

The device, firmware, mobile app, cloud, security model and business systems form one product.

Good integration therefore begins with a clear operational question:

What event do we need to capture or control, and what should happen next?

From there, businesses can choose the simplest architecture that reliably supports that outcome.

Use direct Bluetooth when the phone genuinely needs to communicate with nearby hardware.

Use HealthKit or Health Connect when a platform repository already provides the health data the experience needs.

Use companion frameworks when the product spans phone and wearable.

Consider Matter where interoperable smart-home control makes sense.

Use gateways or cloud connectivity when devices must operate independently of a nearby phone.

Then design synchronization, permissions, offline behavior, identity, security and lifecycle support before deployment.

The companies that gain the most from connected products are usually not the ones collecting the most sensor data.

They are the ones that convert the right device signal into a useful customer experience or a measurable business action.
